MODULAR SERIES

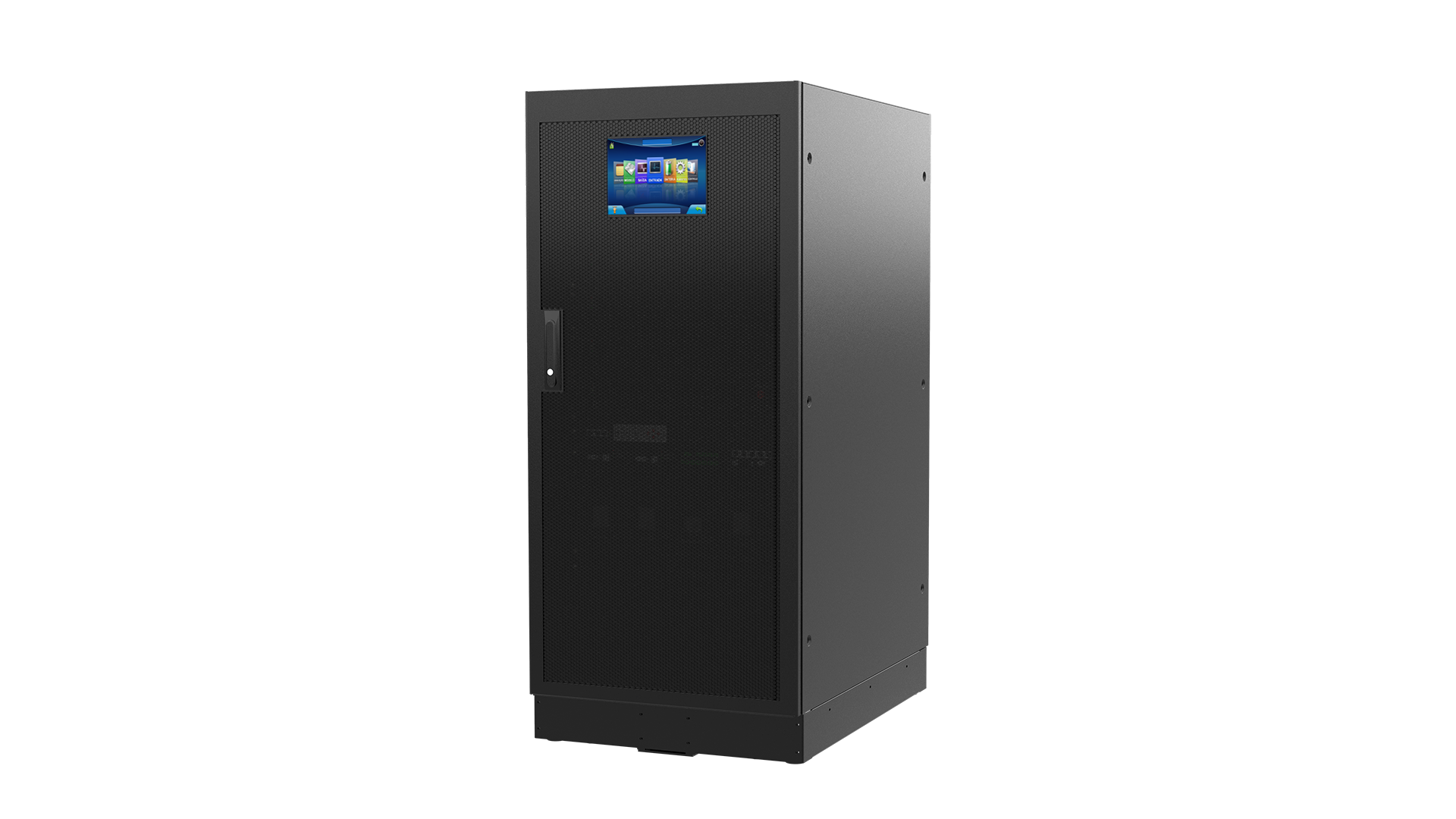

MT Series Online Hot-Swappable Modular UPS （Each Module 30KVA)

System Introduction

MT-B Series is 30-300kVA Online HF double conversion topology. It adopts dual DSP controlled technology with modular parallel redundancy feature. System can parallel racks up to 4 racks. The system THDI≤5％，and system overall efficiency AC~AC up to 95％. Thus, MT-B Series can be defined as a high reliability and efficiency green power and suitable for medium to large data centers, precision equipment, and telecommunications industry.

System Features

High Performance Index

◆ 3/3 Phase double conversion online technology. Input 3 phase load balanced design.

◆ System adopts dual DSP controlled to enhance the overall reliability and keep low defective rate.

◆ 19 inch standard cabinet design to perfectly match equipment room working environment with 1.4 or 2 meter cabinet heights.

◆ Modular structural design. Each module is 30KVA. System can add from 1 to 10 modules. Maximum capacity 300KVA, user can be flexible to choose different capacity to match requirements. UPS modules can be hot-swappable to do online maintenance.

◆ High density module design. Each module is 3U. 1.4 meter height system cabinet can put maximum 5 modules with total 150VA.2 meter height system cabinet can put maximum 10 modules with total 300KVA.

◆ N+X Parallel Redundancy design. With X≥2 modules, UPS system reliable rate can be upto 99.9%，MTBF is upto 250K hours.

◆ Control module parallel redundancy. MT-B Series each module is independently controlled by own controlling systems. Any module failure will not be affecting the whole system. With hot-swappable technology, user can easily eliminate failed modules.

◆ Individual bypass design. Each module has built-in bypass breaker and bypass inductance to keep better system reliability.

◆ Share Common Battery Bank in parallel systems to reduce user initial battery investments.

◆ Flexible battery configuration (32-40 pieces selectable). User can choose customized configuration with 32/34/36/40 pieces.

◆ Charging current can be selectable. User can set battery capacity on the LCD panel to auto select the best charging rate for the batteries. Also various charging methods can be chose via front panel.

◆ Intelligent Charging Managements: Stage 1 with constant high charging current to reach 90% capacity. Stage 2 with constant voltage- flexible current charging to reach 99% battery capacity. Stage 3 will go to float charge. Charger will choose charging modes to activate battery lifetime and save battery investments.

◆ Big LCD touch screen (320*240 dot-matrix) display. Language can be chosen on the front screen. Rich operational information will be shown on the front screen such as all UPS parameters.

◆ Each module has additional LCD + LED display. User can simply check each module working status.

Intelligent management system. User can choose SNMP adapter to remotely monitor UPS status.

◆ Standard Maintenance bypass feature. User does not need to pay extra for maintenance bypass.

◆ EPO equipped.

Safe and Reliable

◆ Parallel Redundancy Module Technology to increase system reliability；

◆ Online Hot-Swap feature to reduce system maintenance costs and comprehensively protects the Loads operations；

◆ MTBF is 1.5 times longer than traditional UPS systems；

◆ 90% of system components are from international famous brands. All devices has been aged and tested for24 hours.

Compatible applications/loads

MT-B Series is designed for small and medium important equipment

/application systems, such as SME data exchange centers, communication equipment industry, and precision instruments

Model		90KVA（30-90KVA/27-81KW）	150KVA（30-150KVA/27-135KW）	300KVA（30-300KVA/27-270KW）
Capacity		30KVA/27KW
Host Machine Specification
UPS Structure		Online Double Conversion
Appearance		Standard Telecomm Cabinet with Modular Structure Design
Overall Efficiency		> 95%
Noise（In 2 Meters）		< 50-65dB
Working Temp.		0-40℃
Storage Temp.		-25 ~ 55℃（Without Batteries)
Humidity		< 95% Non-Condensing
Safety Standard		IEC62040
EMC Standard		CE,YD/T1095-2008，EN /IEC 62040-2，EN/IEC 62040-1-1
Parallel Redundancy		Modular Parallel upto 10 Units
Protection		Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low
DC Start		Available
Generator Compatibility		Available
Display		7 Inch LCD Color Touch Screen:multi-language with all kinds of messages+LED
Mute		Auto
Cabinet Standard		IP20
Cooling System		Intelligent Speed Control Cooling Fan
Elevation		＜1000M without derated, >1000M: Derated 1% every 100M
Rectifier Specification
Input Voltage		380Vac+N+W, 3 Phase
Input Voltage Range		208-478Vac
Input Frequency Range		40-70Hz
Soft-Start		> 60 Seconds
Input PF		0.99
THDI		≤ 3%(100% Non-Linear Load)
Output Specification
Output Voltage		Line Voltage: 380×（1±1%）AC or Phase Voltage: 220×（1±1%）AC
Output Power Factor		0.9
Output Voltage Regulation		380Vac±1%（Static Load）； 380Vac±2%（50-0% Sudden Change）； 380Vac±3%（100-0% Sudden Change）
Output Frequency		Synchronization with Input at online mode. When differences are greater than ±10% (Selectable±1%,2%,4%,5%) Output freq. will be 50×(±0.2)Hz 50Hz±0.2% (BAT Mode)
Distortion		<2%(Linear Full Load); < 5%(Non-Linear Full Load)
3 Phase Unbalanced		Allow 3 Phase 100% Unbalanced
Output Volt. Unbalanced Degree		≤1%（ Balanced Load）， ≤2%（ 50% Balanced Load）
Input/Output Phase Swift		≤1°（ Balanced Load）， ≤2°（ 50% Balanced Load）
Frequency Tracking Range		47-63Hz
Output Waveform		Pure Sine Wave
Overload		110%: More than 10 mins
		> 125%: More than 1 min;
		> 150%: More than 30 Seconds then transfer to bypass
Crest Ratio		3∶1
Efficiency		> 95%
Short-Circuit		Circuit Auto-Protection, Bypass Switch Tripping
Output Abnormal		INV. Output Auto-Locked Protection
Bypass Specification
Static Bypass Transfer Time		0ms
Static Bypass Input Range		Bypass Protection upper limit：+15% (adjustable +5%、+10%、+25%) Bypass Protection lower l imit： - 45 %( adjustable- 20 %、 - 30 %) Bypass Frequency Protection Range：±10%
Frequency Range		±1Hz, ±2Hz, ±3Hz Adjustable
Bypass --> INV Transfer Time		2ms
Frequency Tracking Speed		0.5-2hz/s
Manual Maintenance Bypass		Available
Battery Specification
Type		Sealed Lead Acid Maintenance Free
BAT Rated Volts/Units		±192V\±204V\±216V\±228V\±240V DC; (32、34、36、38、40 Units Selectable)
Charging Current	Cabinet	30Amax	50Amax	100Amax
	Module	10Amax
BAT Low		Shutdown Protection
Communication Specification
Communication Port		RS232/SNMP/485/ Dry Contact（Optional Accessory）
Remote Software		Multi-functional Monitoring System, Online and BAT Mode Status, BAT Fault, Remote Control
Physical Parameters
Module Size mm (W×D×H)		30KVA：443×580×131/3U
Cabinet Size mm (W×D×H)		600×840×1400	600×840×1400	600×1100×2000
Module Net Weight Kg		30KVA：33
Cabinet Net Weight Kg		157	169	306
